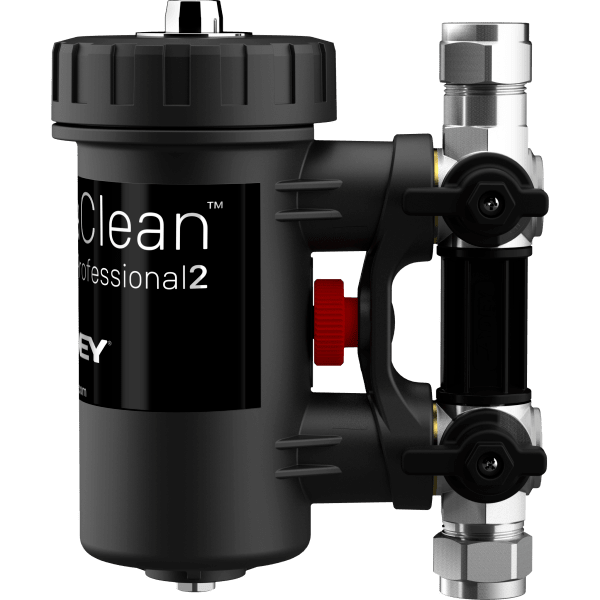

Adey 22mm MagnaClean Professional 2 Magnetic Filter

In stock
Regular price £120.96 inc. VAT

MagnaClean Professional2® has been expertly designed to maximise the capture of magnetite. Engineered to actively trap virtually all circulating debris, it never stops delivering the very best protection. No wonder it’s the UK’s first-choice filter.

Installer benefits

  • Captures magnetic and non-magnetic debris
  • Ultra-thin sheath enhances magnetite capture
  • In-line installation can be completed in just two minutes
  • 360° rotational valves providing multiple installation options
  • Bi-directional flow means either port can be an inlet, increasing flexibility
  • Removable sheath makes servicing quick and easy
  • Chemicals can be easily dosed directly into the canister
  • Low-profile drain valve designed for easier servicing
  • Rapid-fit connectors for faster servicing

Technical Specifications

Canister and Lid

  • Material: Glass reinforced nylon
  • Fluid capacity: 550 ml
  • Inlet diameter: 22 mm at valve
  • Outlet diameter: 22 mm at valve
  • Thread: Pressure thread
  • Flow configuration: Bi-directional
  • Main lid seal: EPDM
  • Valve to canister: EPDM

Drain Port

  • Drain plug material: Nickel plated brass
  • Drain plug thread: M8
  • Seals: EPDM

Size/ Dimensions (Product Installation)

  • Height: 203mm
  • Width at lid: 98mm
  • Distance between filter centre & valve centre: 100mm

Magnet

  • Housing: Stainless steel
  • Length: 150 mm
  • Diameter: 19 mm

Seal Valves

  • Body material: Nickel plated brass
  • Seal material: Long life PTFE ball seals
  • O ring material: EPDM 70 seals
  • Valve inlet/outlet: 22 mm

Material

  • Weight: 2kg
  • Finish/colour: Black
