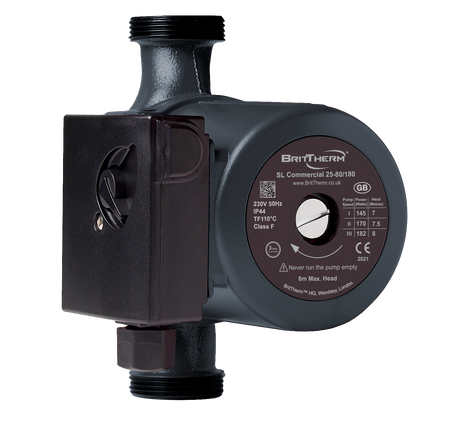

BritTherm SL Commercial 25-80/180 Circulating Pump

The SL Commercial 25-80/180 is a 3 Speed Manual Light Commercial Heating Circulator with a standard 1 ½” threaded connection. It has a port-to-port distance of 180mm. It produces a maximum head of 8 meters making it the perfect replacement integrated circulator.

Intended for heating, cooling and air-conditioning systems, solar and geothermal energy systems. The pumps are maintenance-free for their entire service life, which confirms their high reliability. Easy to control - three constant pump speeds, easy to set using a mechanical switch. The cast iron pump volute casing is cataphoresis coated, which acts as a protective layer that allows for dozens of times greater corrosion resistance. The pump casing is aluminium and ventilated, eliminating internal condensation and corrosion.

The SL Commercial comes with a 3 year BritTherm™ guarantee.

Technical Specification

Port to Port Distance: 180mm
Maximum Head: 8 Meters
Maximum Flow Rate: 115 Litres Per Minute
Speed Control: 3 Fixed Speeds
Maximum System Pressure: 1.0 MPa / 10 Bar
Protection Class: IP44
Temperature Class: TF110ºC
Insulation Class: F
Supplied With: Rubber Washers x2
Material: Cast Iron
Colour: Black
Weight: 4.2kg
