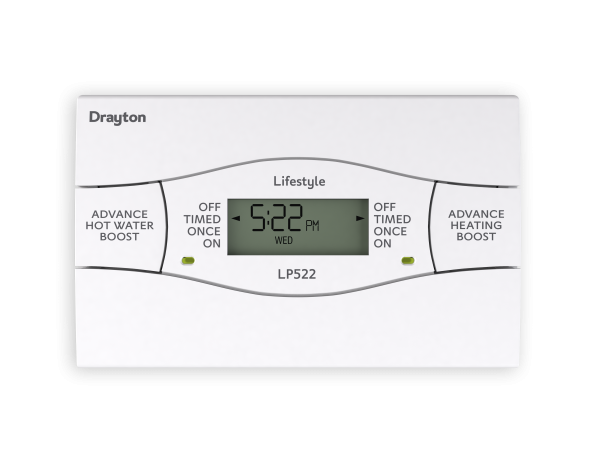

Drayton LP522 2-Channel Digital Programmer
Regular price
£74.07
inc. VAT
Couldn't load pickup availability
Allowing different programmes for weekdays and weekends, and independent timing of each channel, the LP522 provides the ability to control centrals heating even more efficiently. No longer do systems have to switch on as early at weekends as they do on weekdays.
- Separate timings for heating & hot water
- Different programmes for weekdays and weekends
- Suitable for fully pumped or gravity hot water systems
- Boost & advance
- Automatic summer/winter time change
- Built-in standard programme - 3 on/off settings per day
- Backlit screen
- Industry standard wall plate
Specification
| Part number | 25475 |
| Software Class | A |
| Relevant EC directives | 2006/95/EC Low Voltage Directive | 2004/108/EC Electromagnetic Compatibility Directive | 2013/56/EU Battery Directive | 2011/65/EU RoHS Directive |
| Applied standards | EN60730-1; EN60730-2-7 |
| Timing resolution | 1 minute |
| Ball pressure test | 75ºC |
| Pollution degree | 2 |
| Power supply | 230V a.c. +10% -10% 50Hz |
| Mounting | Industry standard wallplate |
| Wiring | Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671) |
| Output | 230V a.c. |
| Rated impulse voltage | 2.5kV |
| Switch rating | 2(1)A 230V a.c. each switch |
| Ambient operating temperature | 0°C to +50°C |
| Ambient storage temperature | -20°C to 50°C |
| Ambient operating humidity (non condensing) | 25 - 90% |
| Ambient storage humidity | 15 - 95% |
