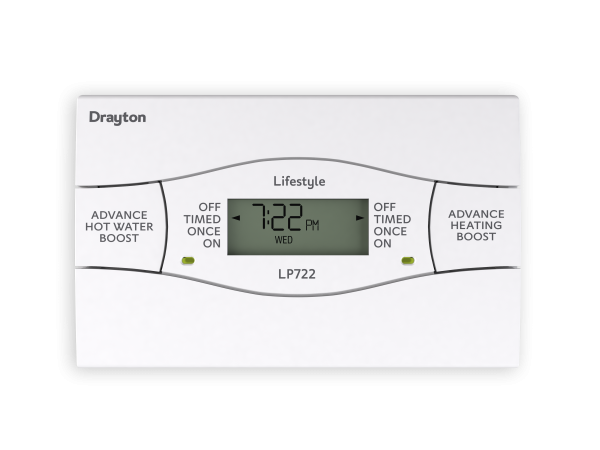

Drayton LP722 2-Channel Digital Programmer
Regular price
£75.56
inc. VAT
Couldn't load pickup availability
The top of the range LP722 allows independent programming of each channel every day of the week. Scheduling heating to suit your lifestyle can mean considerable energy savings if week patterns vary. Holiday mode allows temporary shut down for chosen periods.
- Separate timings for heating & hot water
- Set different programmes for every day
- Suitable for fully pumped or gravity hot water systems
- Boost & advance
- Automatic summer/winter time change
- Built-in standard programme - 3 on/off settings per day
- Backlit screen
- Industry standard wallplate
Specification
| Part number | 25476 |
| Software Class | A |
| Relevant EC directives | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2006/66/EC Batteries Directive 2011/65/EU RoHS Directive |
| Applied standards | EN60730-1; EN60730-2-7 |
| Timing resolution | 1 minute |
| Ball pressure test | 75ºC |
| Pollution degree | 2 |
| Power supply | 230V a.c. +10% -10% 50Hz |
| Mounting | Industry standard wallplate |
| Wiring | Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671) |
| Output | 230V a.c. |
| Rated impulse voltage | 2.5kV |
| Switch rating | 2(1)A 230V a.c. each switch |
| Ambient operating temperature | 0°C to +50°C |
| Ambient storage temperature | -20°C to 50°C |
| Ambient operating humidity (non condensing) | 25 - 90% |
| Ambient storage humidity | 15 - 95% |
