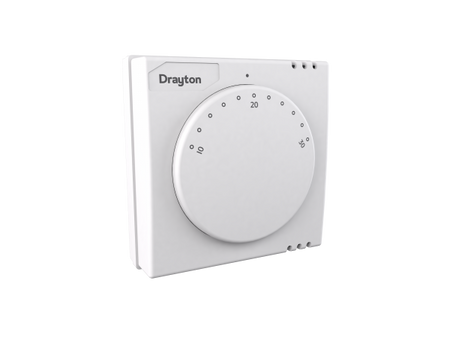

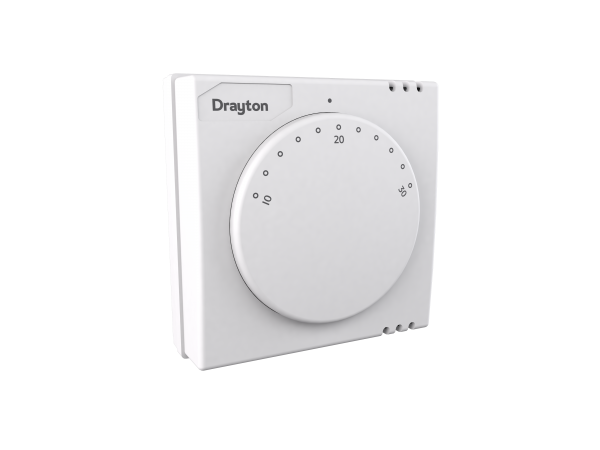

Drayton RTS1 Room Thermostat
Regular price
£21.88
inc. VAT
Couldn't load pickup availability
Standard room thermostat utilising electronic sensing to provide accurate temperature control.
- 10°C to 30°C range
- S.P.S.T.2(1)A 230V AC
- Double insulated (no earth required)
- Range limiting stops
- Surface or conduit box mounting
- Set point locking
Part number | 24001 |
Energy Class | IV = 2% (Acc. EU 811/2013, 812/2013, 813/2013, 814/2013) |
Wiring | Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671) |
Relevant EC directives | 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive 2011/65/EU RoHS Directive |
Applied standards | EN60730-1; EN60730-2-9 |
Setting range | 10°C - 30°C |
Control accuracy | <0.6ºC at 4º/hour |
Ball pressure test | 75ºC |
Pollution degree | 2 |
Power supply | 24-230V a.c./d.c. 50Hz fused 3A double insulated (no earth required) |
Mounting | Suitable for surface or conduit box mounting |
Wiring | Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671) |
Switch type & rating | S.P.S.T 2(1)A 230V a.c. |
Ambient operating temperature | 0ºC to 40ºC |
Ambient storage temperature | –20ºC to 55ºC |
Ambient operating humidity (non condensing) | 25% to 90% |
Ambient storage humidity | 15% - 95% |
