Home » EPH V222P 22mm 2 Port Zone Valve
EPH

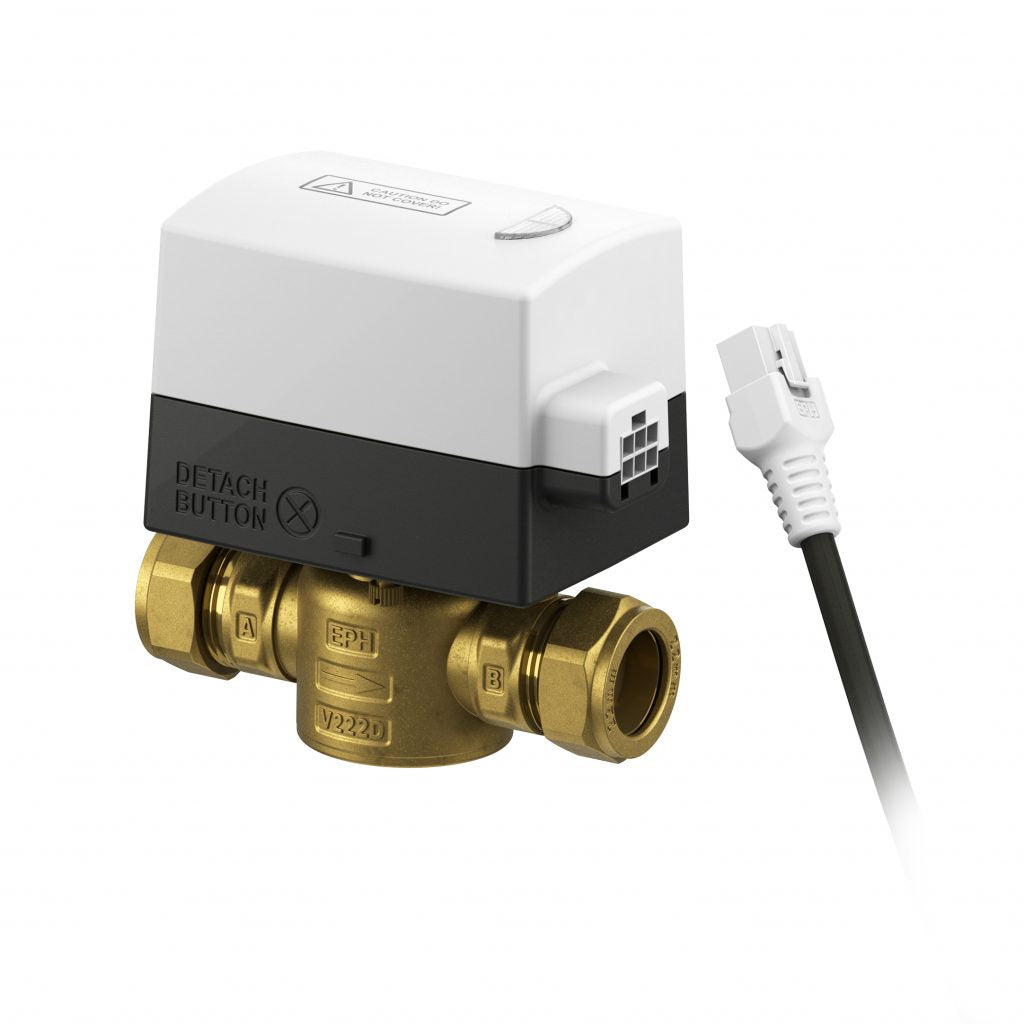

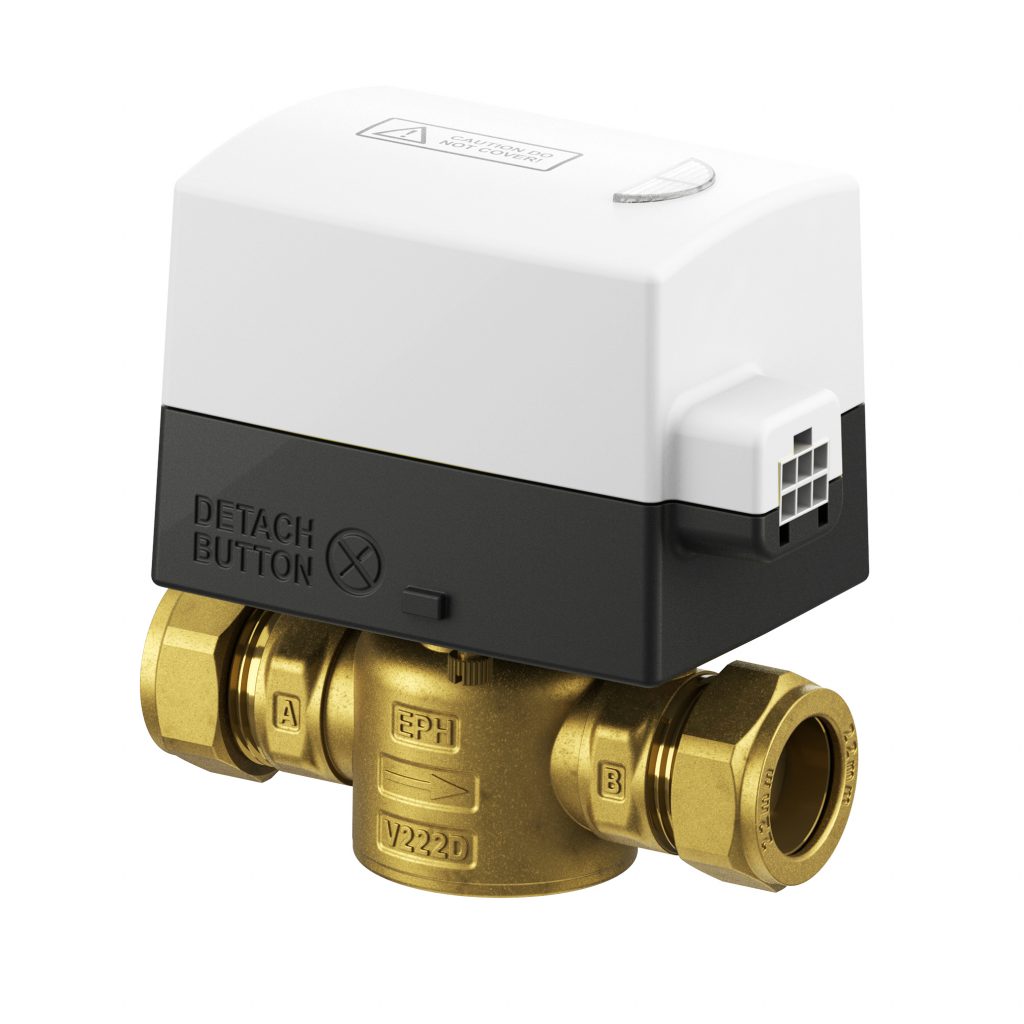

EPH V222P 22mm 2 Port Zone Valve

In stock
£70.56 inc. VAT

2 port compression motorised valves with detachable actuator, detachable cable and power on light. These motorised valves are the perfect solution for zoning your hot water or central heating circuits.

Technical Data

PRODUCT CODE CONNECTION TYPE FLOW RATE MAX. CLOSE OFF PRESSURE
V221P 3/4“ compression 4.6 kvs 1.0 bar
V222P 22mm compression 4.6 kvs 1.0 bar
V228P 28mm compression 6.8 kvs 0.6 bar
DS222P 22mm compression 4.6 kvs 1.0 bar
Switch Rating 11(3)A 230Vac
Max Ambient Temp 50˚C
Max Fluid Temp 88˚C
